0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays

  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
Τόπος καταγωγής ΚΙΝΑ
Μάρκα HuaXin
Πιστοποίηση ISO14001/ISO9001/IATF16949
Αριθμό μοντέλου ESHX090XZJR01
Ποσότητα παραγγελίας min 1000
Τιμή 1.5-2usd
Συσκευασία λεπτομέρειες BLISTER+BOX FOAM+BUBBLE BAG+ΕΣΩΤΕΡΙΚΟ ΚΑΡΤΟ+Κύριο χαρτοκιβώτιο
Χρόνος παράδοσης 6 εβδομάδες ~ 8 εβδομάδες
Όροι πληρωμής T/t
Δυνατότητα προσφοράς 50k το μήνα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Τεχνολογία προβολής Στρογγυλή οθόνη TFT Ονομα οθόνη oled ρολογιού
Μέγεθος 0.9''''round | Ψήφισμα 128*128 εικονοστοιχεία
Τύπος εμφάνισης TFT Διασυνδέομαι Κηλίδα
Επισημαίνω

0.9 inch round TFT LCD screen

,

128x128 high-definition round display

,

ST7735 driver round TFT screen
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver
0.9" Round TFT LCD Display featuring 128x128 HD resolution, ST7735 driver IC, high contrast ratio, stable performance, and long lifespan. Ideal for commercial electronic products and DIY displays.
Product Parameters
Part No. ESHX090XZJR01
Driver IC ST7735
Outline Dimensions (L x W x H) 25.24mm x 27.14mm x 1.95mm
Active Area (L x W) 23.04mm x 23.04mm
Viewing Angle All directions
Operation Temperature -20°C to +70°C
Storage Temperature -30°C to 80°C
Supply Voltage 3.3V
Luminance 350TYP
Connection Type 4 S-PI

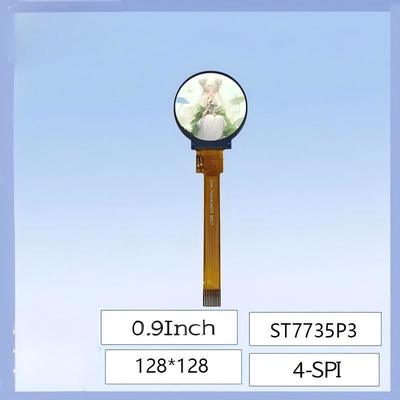

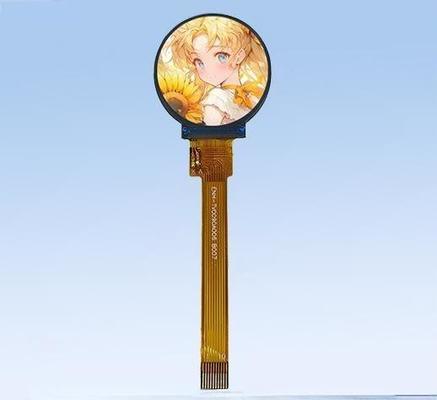

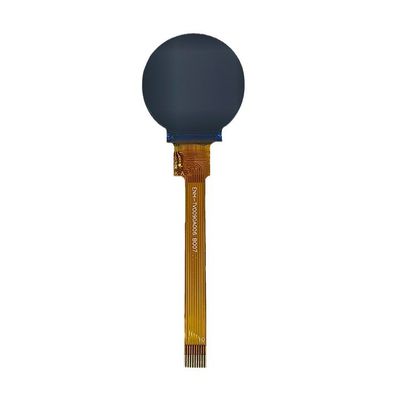

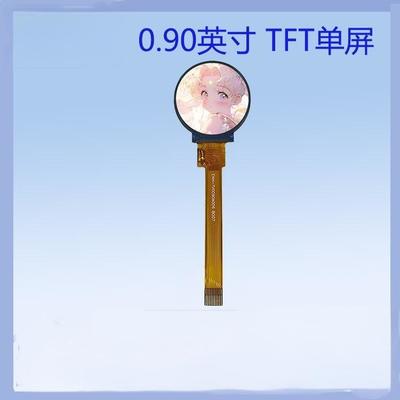

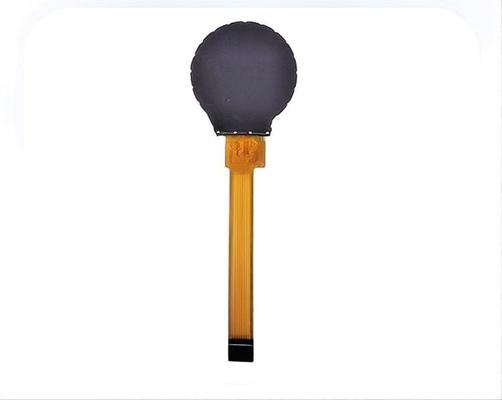

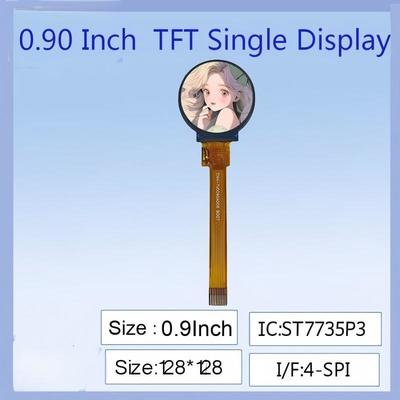

Product Images
0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 0 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 1 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 2 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 3 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 4
Drawing & Pin Definition
0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 5
OLED Product Knowledge
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast ratio
  • Superior color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Company Information
Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: Research, development, and production of LCD, LCM, TFT, backlight, and OLED displays
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • Quality control: 15% of workforce
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Huaxin Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom product design capabilities
Production Capacity
Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios
  • Collimators & navigators
AMOLED Display Characteristics
  • Self-emissive pixels
  • Superior contrast ratio
  • Excellent color accuracy and vibrancy
  • Wide viewing angles
  • Power efficiency
  • Thinness and flexibility
  • Fast response time
AMOLED Power Efficiency Comparison
Power Consumption
  • AMOLED: Power consumption per pixel (black pixels consume minimal power)
  • LCD/LED: Constant backlight power regardless of content
Content Dependency
  • AMOLED: More efficient for dark content (pixels can turn off)
  • LCD/LED: Constant power consumption regardless of content
Brightness Control
  • AMOLED: Dynamic pixel brightness adjustment
  • LCD/LED: Fixed backlight brightness
Display Size Impact
  • AMOLED: More efficient for smaller displays
  • LCD/LED: Larger displays require more powerful backlights
