【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency

  • 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency
  • 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency
  • 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency
  • 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency
  • 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency
  • 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency
Τόπος καταγωγής ΚΙΝΑ
Μάρκα HuaXin
Πιστοποίηση ISO14001/ ISO9001/IATF16949
Αριθμό μοντέλου Eshxsy040wdg01
Ποσότητα παραγγελίας min 1000
Τιμή Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες BLISTER+BOX FOAM+BUBBLE BAG+ΕΣΩΤΕΡΙΚΟ ΚΑΡΤΟ+Κύριο χαρτοκιβώτιο
Χρόνος παράδοσης 6 εβδομάδες ~ 8 εβδομάδες
Όροι πληρωμής T/t
Δυνατότητα προσφοράς 50k το μήνα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Τεχνολογία προβολής Μονάδα οθόνης AMOLED Ονομα Οθόνη Micro OLED
Μέγεθος 0.4 ίντσες Ψήφισμα 1440*1080
Διασυνδέομαι Mipi
Επισημαίνω

0.4-inch HD EVF Type-C

,

Micro OLED display for industrial equipment

,

High PPI electronic viewfinder low latency
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
0.4-inch HD EVF Electronic Viewfinder Type-C Solution 1440×1080 Resolution

High-resolution 1440×1080 display solution designed for industrial equipment, medical instruments, and telescopes. Features high PPI and low latency performance with Type-C plug-and-play connectivity.

This 0.4-inch EVF Electronic Viewfinder offers industrial-grade stability and medical-grade HD quality, specially adapted for telescope applications.

Product Parameters
Display Technology AR display / Si-OLED
Size 0.4 Inch
Resolution 1440×1080
Interface MIPI
Field of view angle 32°
Color gamut performance 90% D0-P3
Testing Board HDMI and Type C optional
Part No. ESHXSY040WDG01

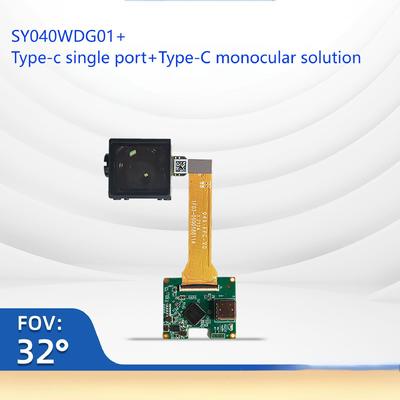

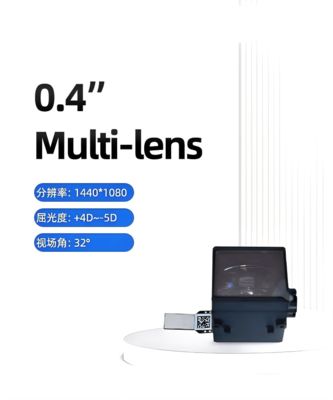

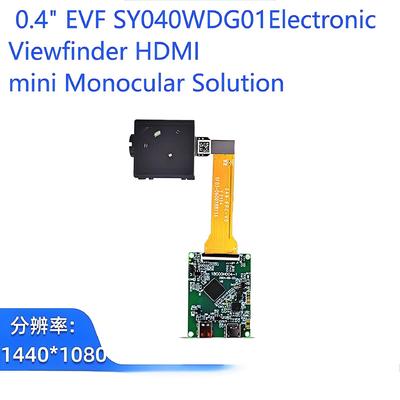

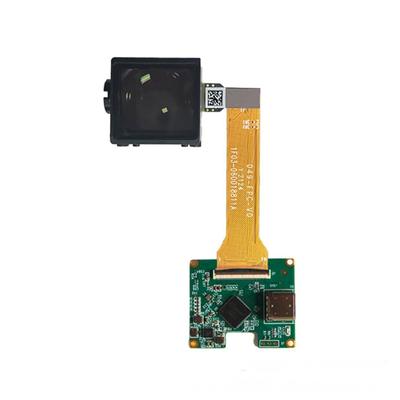

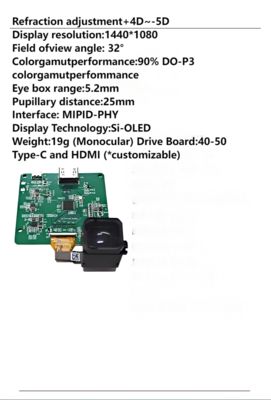

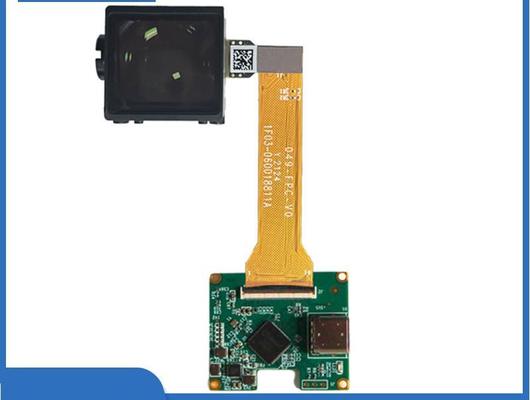

Product Images
【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency 0 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency 1 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency 2 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency 3 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency 4 【0.4-inch HD EVF】Electronic Viewfinder Type-C Solution 1440×1080 Resolution Suitable for Industrial Equipment / Medical Instruments / Telescopes High PPI Low Latency 5
OLED Technology Overview
Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption
Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter lifespan than LCD and TFT
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • Superior Contrast Ratio
  • Excellent Color Accuracy and Vibrancy
  • Wide Viewing Angles
  • Enhanced Power Efficiency
  • Thinness and Flexibility
  • Fast Response Time
Power Efficiency Comparison
AMOLED vs Other Display Technologies
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can be turned off
  • Brightness Control: AMOLED can dynamically adjust pixel brightness for better efficiency
  • Display Size: AMOLED is more efficient for smaller displays as consumption scales with pixels
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & communication devices
  • Collimators & navigational equipment
Company Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
Registered Capital: 20 million
Current Staff: 500+

High technology enterprise specializing in research, development, and production of LCD, LCM, TFT, backlight, and OLED solutions.

Huaxin Advantages
  • Cost-effective inland factory location
  • Advanced equipment ensuring stable quality
  • Automated production processes for efficiency
  • Experienced engineering team with 20+ years in LCD field
  • Custom product design capabilities
Certifications

ISO14001 / ISO9001 / IATF16949
SGS certified LCD modules

Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
